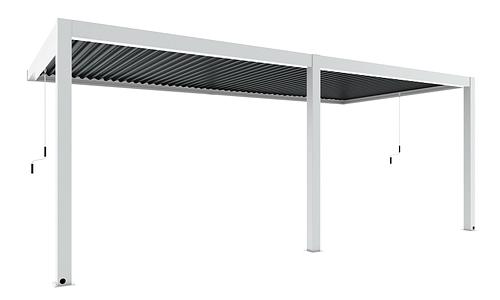

Luxe Louvres 6 x 3m Wall Mounted - 9 Variations #29

This deal is going through!

$ 4,599

plus delivery

Available on

Estimated Dispatch From Akld

September 22nd

This Item is Delivery-Only

PRE-ORDER NOW

Questions?

Promotional Terms & Conditions

FREE GIFT WITH PURCHASE.
The free gift is a luxe louvre drop down screen with an RRP of $1099 / This gift is only available with specific luxe louvres on specially-marked deals.
/ There is one screen given free with each Luxe Louvre.
i.
e.
If you buy 2 Luxe Louvres you will receive 2 screens.
/ This gift is as stated and cannot be exchanged for cash or credit.
/ All Louvre orders are irrevocable except under circumstances outlined in our Terms & Conditions.
/ If your order is cancelled for any reason, you will no longer be eligible for the free screen.
We will inform you when your Luxe Louvre + screen will be delivered (Estimated dispatch date of the September 22nd) / We reserve the right to substitute a free screen to equal or greater quality and value if this model becomes unavailable for reasons outside of our control.
/ NOTE: You may not cancel a previous order to take advantage of this offer.
/ Offer only available while stocks last.
/Contact will be made after the deal to choose what colour way screen you are after.

Warranty and Guarantee

All goods offered by us carry a 1-year warranty.
If goods are faulty and not repairable we will either exchange it for you or give you a full refund, whatever you desire.
We are a New Zealand company so you are protected by a series of guarantees set out in the Consumer Guarantees Act.
Delivery dates displayed above are estimates only. You will be able to track your purchase at all times.

Minimum Threshold Promise

We know it’s disappointing when a deal does not make it to a full container load so if there’s any way we can combine several orders into one container to make the deal happen, rest assured, we will do it!

FREE 3m Premium Luxe Louvre Drop Down Screen with a total value of $1099 with specially marked Luxe Louvre Deals - look for the logo on the deal! T's & C's Apply.

You already know we’re basically the pergola pimps of the Southern Hemisphere. We've been slinging shade and serving style for years, but Luxe Louvres? They're next level.

We’re talking chunky aluminium frames, smoother lines, customisable colours and that one long, seamless louvre down the centre that screams high-end design. Custom-built looks, without the custom-built cost. That’s the Luxe difference.

Bigger. Bolder. Better.

Thousands of happy customers have already upgraded their outdoor living with our core pergola range which is still one of the best-value options out there - ideal for patios & first-time buyers and those wanting simple value upgrades. But if you're after that full architectural statement, Luxe Louvres is the next level choice.

The Wall Mounted Luxe Louvre is designed a little differently from the freestanding version:

While the overall structure remains sleek and straight, the louvres are installed at a slight angle to ensure proper water runoff when open. This creates a down gradient across the length of the louvres (as shown in the side view image), which is only noticeable when they’re open.

This design also allows our accessories to be installed on any side. We've included a built-in connector on both sides of the structure to accommodate an extra post (essential for wall-side accessories). Each gap comes with a sleek cap, so if you're not using it, the finish remains clean and seamless. Thus, giving you maximum flexibility.

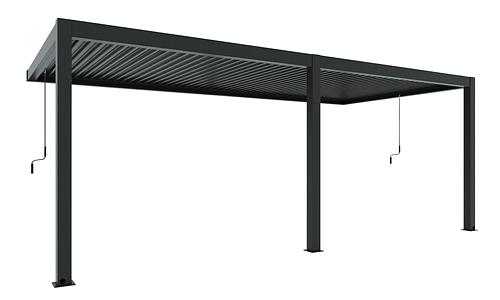

Customisable Colours:

Standard black, grey, or white? Sure. But we’ve gone next-level with mix-and-match options:
- *All colours are Matte*
- Black frame with black louvres
- Black frame with grey louvres
- Black frame with white louvres
- Grey frame with black louvres
- Grey frame with grey louvres

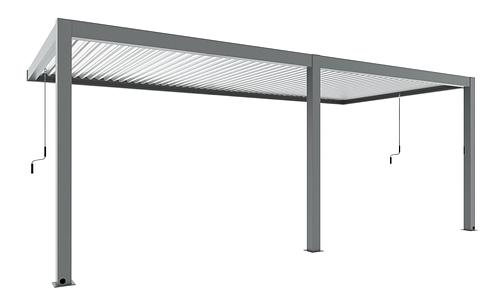

- Grey frame with white louvres
- White frame with black louvres
- White frame with grey louvres

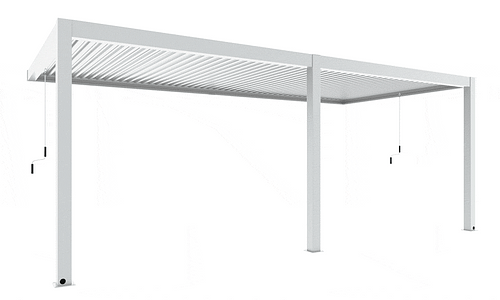

- White frame with white louvres

Finally, a pergola as stylish as your home.

*Our Images are for illustrative purposes only. For precise measurements, please refer to the specifications and dimension drawings below.

Specifications:

Size Name: 6 x 3m Wall Mounted

Exact outer frame Dimensions: 577.8cm x 294.6cm (L x W)
Outer Base plate to outer base plate width: 5838 x 2968mm (593.8cm x 296.8cm)

Height of Column: 2341mm (234.1cm)
Total height including louvres open (+ 12cm approx ): 2461mm (246.1cm)
Internal height (floor to beam): 218.6cm
Internal width post to post: 2706mm (270.6cm)
Louvres Open to: 100 degrees

Material: Aluminium

Beam Size: 155 x 82 x 1.5mm

Column Dimensions: 120 x 120 x 1.3mm
Single layer-louvre dimension: 145 x 30 x 1.1mm

Base Plate: 180 x 180 x 8mm

Screws & Fittings: Aluminium and Galvanised Steel Screws with Stainless Steel 201
2 sets of louvre cranks, 1 at each end.
Louvres open left to right.
3 Legs
Delivery Only
3 Year Warranty

Whether you’re creating a dedicated outdoor dining zone, a poolside chill spot, or the ultimate entertainer’s space, Luxe Louvres are made to turn heads and handle the elements. Our luxe louvres sets a new standard in premium outdoor living whilst staying true to our mission of providing it to you for a fraction of the typical cost.

Installation and Safety recommendations.

Installation: We do recommend that you have your pergola professionally installed, simply because it is a large beast.

Wind: Keep louvres open when not in use to allow wind to pass through, ensuring stability.

Rain: Waterproof during regular showers. Minor dripping may occur during torrential rain?

Coastal Care: Hose down periodically in coastal areas to protect against sea spray

Professional Installers

MO Engineering & Installations - Matt is a contract engineer and professional louvre installer in the

Auckland/Waikato Region. See his Facebook page here for more info.

Kitset Assembly Services - They’re really friendly, know what they’re doing and have branches

around NZ. Check out their website: www.kas.co.nz

Jk Glass & Aluminium - Aluminium specialists for commercial or residential work. Check out their website: https://jkglassandaluminium.com/

And before you ask, no, we don’t get any kind of money for saying this!

*Note we recommend only booking your installer once you have received all parts of your pergola*

Additional Building Information:

In some cases, a building or resource consent may be needed. Building work related to porches and verandas up to 20 square meters generally does not require a building consent. However, it's important to note that local councils may have specific requirements or restrictions. We recommend checking with your local council authorities for further information and guidance before installation if needed. Especially for pergolas over 20 square metres or if you are considering building close to load-bearing walls.

Warranty Exclusions:

This structure is a non-permanent structure and warranty does not cover fading or damage incurred due to extreme weather exposure (including heavy rain, winds, exposure to high heat from bbqs and heaters). It also does not cover damage to the pergola caused by negligence, accident or misuse. Please follow the instruction manual for installation as damage caused by not following the instructions will void your warranty.

Warranty covers domestic use only and does not apply to commercial use. However, we will do our best to help with any issues or replacements parts.
