Currently this is pick-up only from an Auckland Location, you are welcome to organise your own freight we have provided packed dimensions below.
Your car deserves the best, and that's exactly what our premium aluminium carport delivers. At Container Door, we're not just getting started with aluminium structures—we're pros. We've sold over 8,000 aluminium pergolas across New Zealand, so when it comes to quality and design, we know our stuff. Now, we're taking all that expertise and moving on to carports, bringing you the same top-notch craftsmanship and sleek style.
Keep your vehicle protected with our premium aluminium structure, designed to withstand the elements while looking sleek in any driveway.Our 6-metre long solid aluminium beams are engineered for exceptional strength and structural integrity. Unlike beams with multiple joins or sections, these continuous solid beams provide durability and load-bearing capacity.
The overall dimensions for this carport is 6.05m Long, 3m Wide and 2.45m high (at its highest point).
The entrance stands at 245cm high, sloping down by 15cm to 230cm at the rear, ensuring water flows away from the entrance. For added support, an extra leg is positioned in the middle at the back of the carport. The aluminium panel roof features an interlocking corrugated system to also prevent leakage.
A carport is great for protecting your car—until it becomes the perfect spot for BBQs, home gyms, or an impromptu dance floor!
Want more than just a roof? Opt for panelled sides (sold separately) to add shelter from wind and rain—or simply to enhance the look of your space.

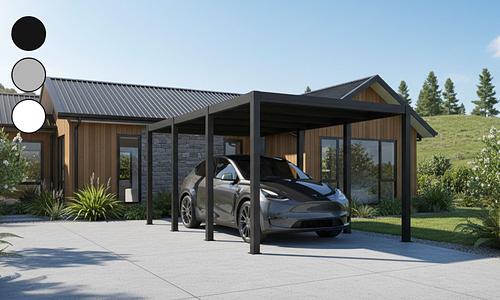

Available in 3 Matte Colours:
- Black
- Grey
- White
Overall Dimensions:
- 605cm x 300cm x 235 - 245cm (L x W x H)
Clearance (from base plate to top of under top beam):
- Lowest clearance: 215cm
- Highest clearance:: 229cm
Specifications:
- Full Aluminium Construction
- Post Dims: 120 x 120 x 2mm
- Side Beam Dims: 120 x 85 x 1.5mm
- Middle Beam Dims: 100 x 50 x 3mm
- Gutter Dims: 100 x 45 x 1.5mm
- Base Plate Dims: 180mm, 120cmm post.
- Includes: 6 x roof panels that are 315 cm x 100cm (L x W)
- Distance between the legs on the 605cm side is 185.65cm
- Distance between the legs on the 300cm side is 132.cm
Installation
- Professional installation recommended due to the size.
- Install on a concrete slab or footings with a minimum depth of 150mm.
- Use provided screws in sheltered, domestic areas only. For exposed locations, use professional assistance and obtain suitable fixtures (not provided).
- Alterations void warranty.
Warranty Exclusions:
Warranty excludes fading, extreme weather damage, and misuse. For coastal areas, occasional washing is recommended to prevent corrosion.
Please follow the instruction manual for installation as damage caused by not following the instructions will void your warranty. Warranty covers domestic use only and does not apply to commercial use. However, we will do our best to help with any issues or replacements parts.
Packed Dimensions (mm):
Box 1: 2350*390*140mm - 24.6kgs
Box 2: 2450*390*140mm - 24.2kgs
Box 3: 2500*390*140mm - 25.9kgs
Box 4: 2870*290*140mm - 47.3kgs
Box 5: 5950*280*190mm - 56kgs
Box 6: 3200*1100*100mm - 56.5kgs
Box 7:300*220*220mm- 15.5kgs
