Currently this is pick-up only from an Auckland Location, you are welcome to organise your own freight we have provided packed dimensions below.

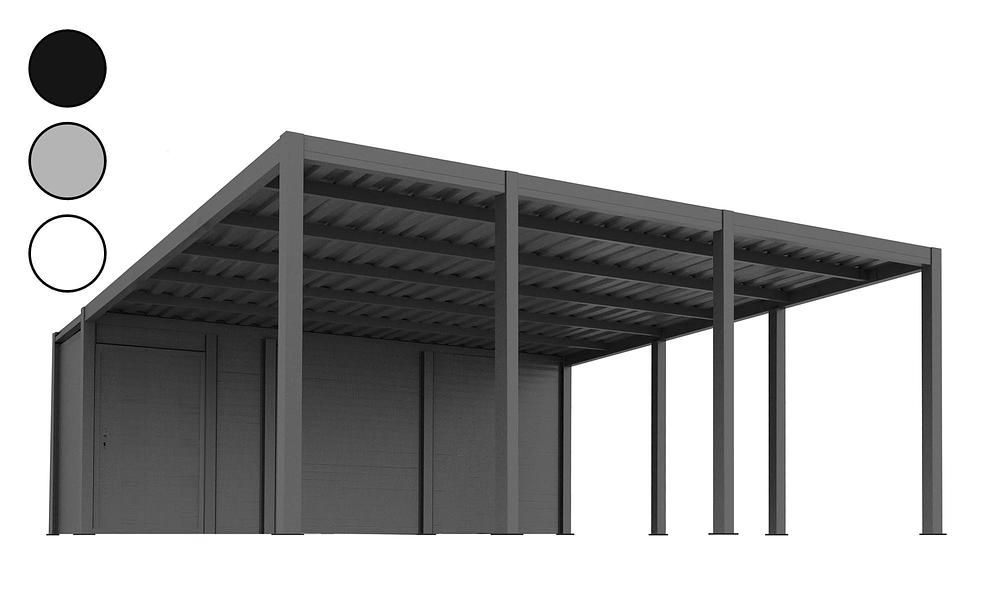

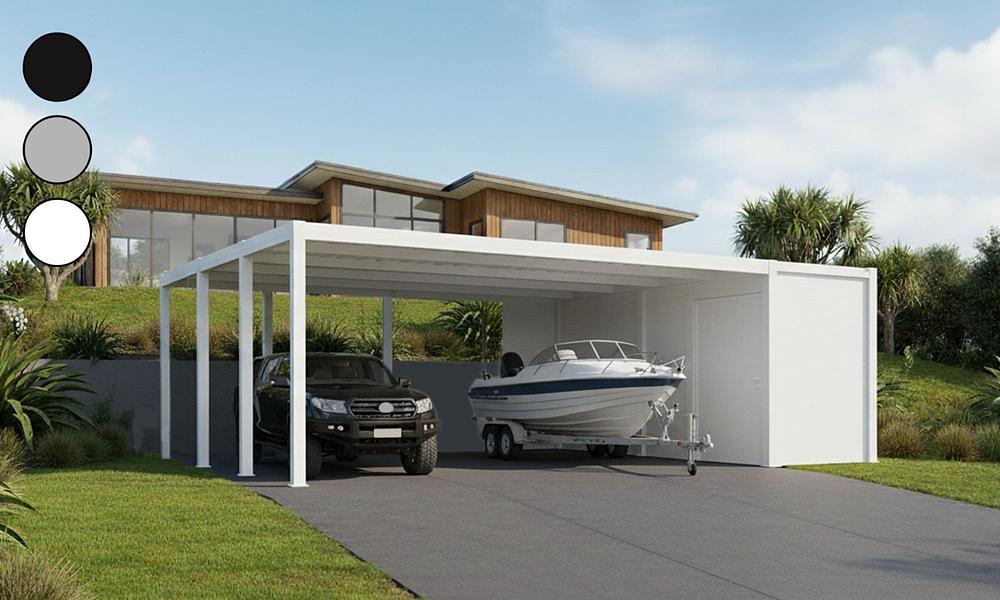

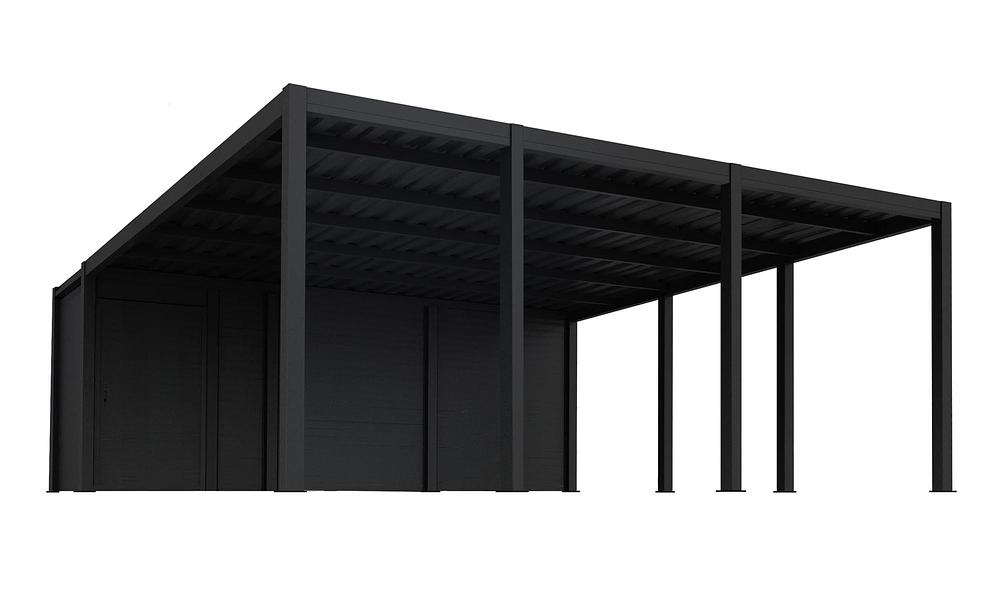

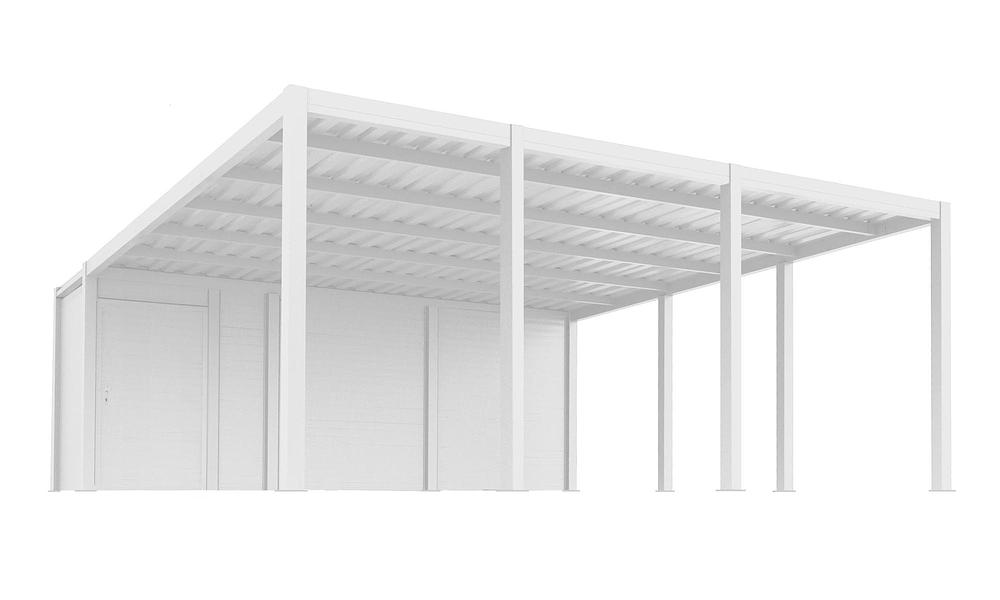

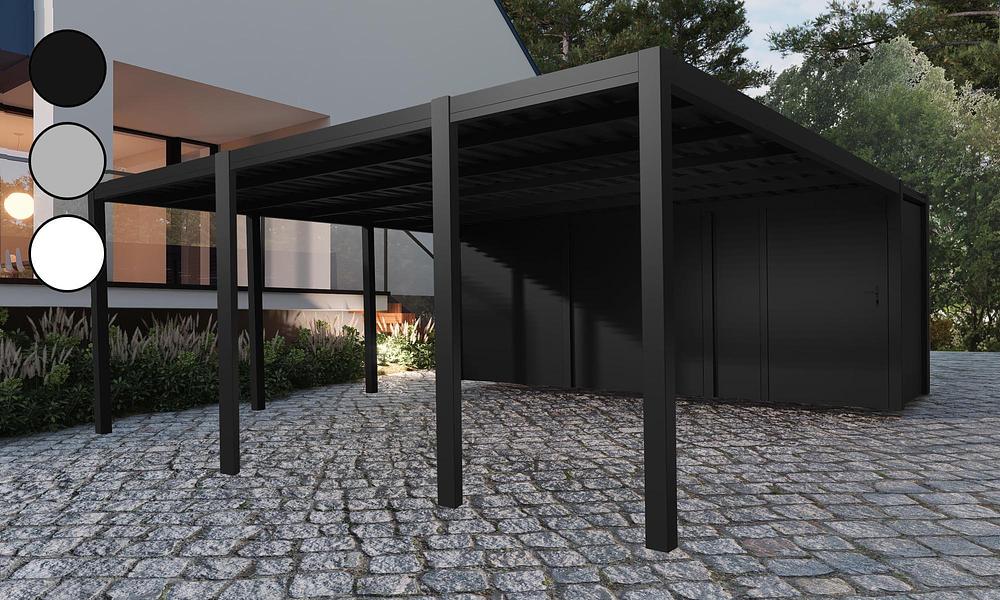

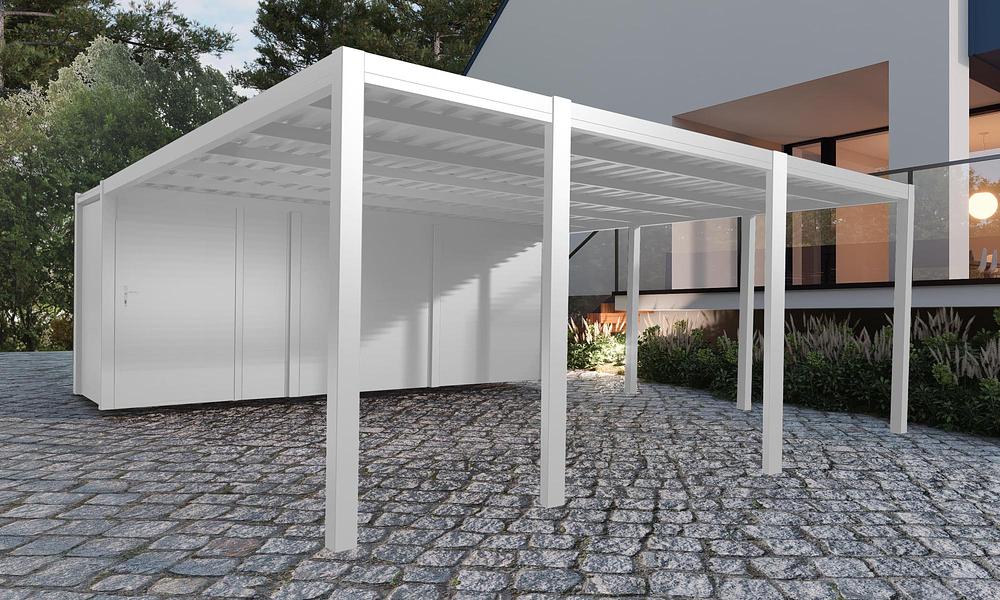

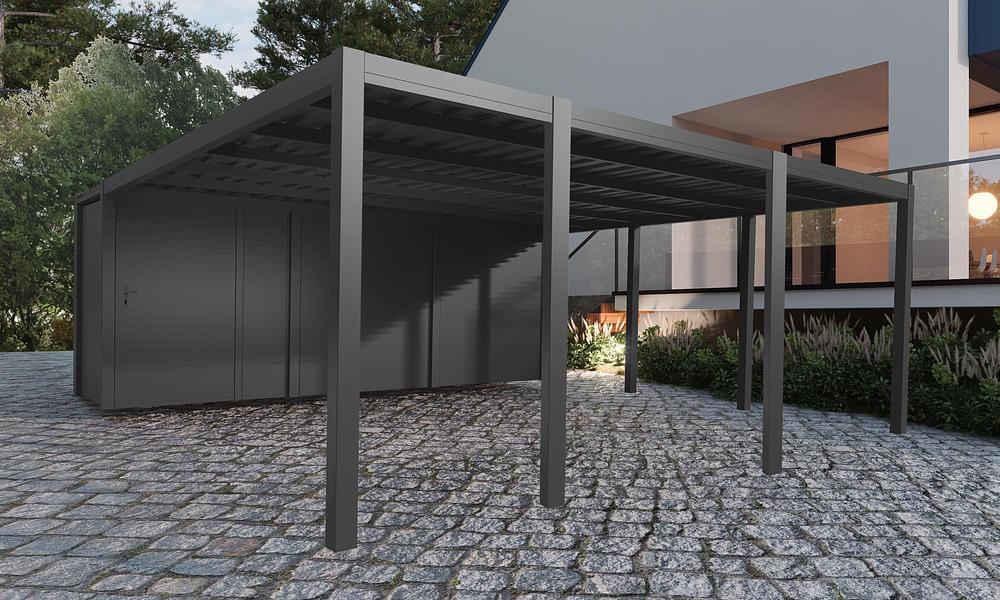

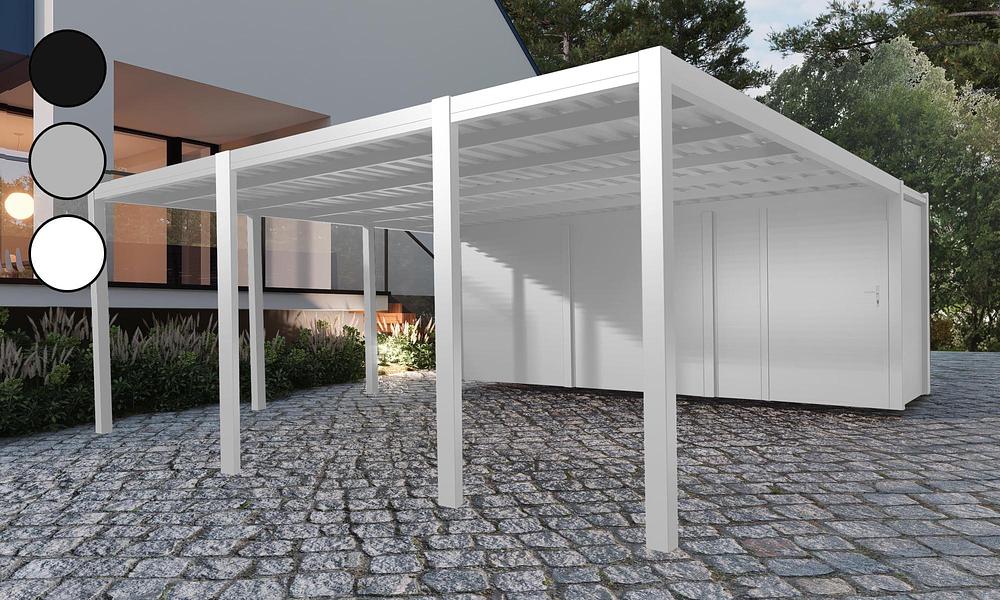

Introducing Our Premium Aluminium Carport with Storage Room
Your car deserves the best, and that's exactly what our premium aluminium carport with storage room delivers. At Container Door, we're not just getting started with aluminium structures—we're pros. We've sold over 8,000 aluminium pergolas across New Zealand, so when it comes to quality and design, we know our stuff. Now, we're taking all that expertise and moving on to carports, bringing you the same top-notch craftsmanship and sleek style.

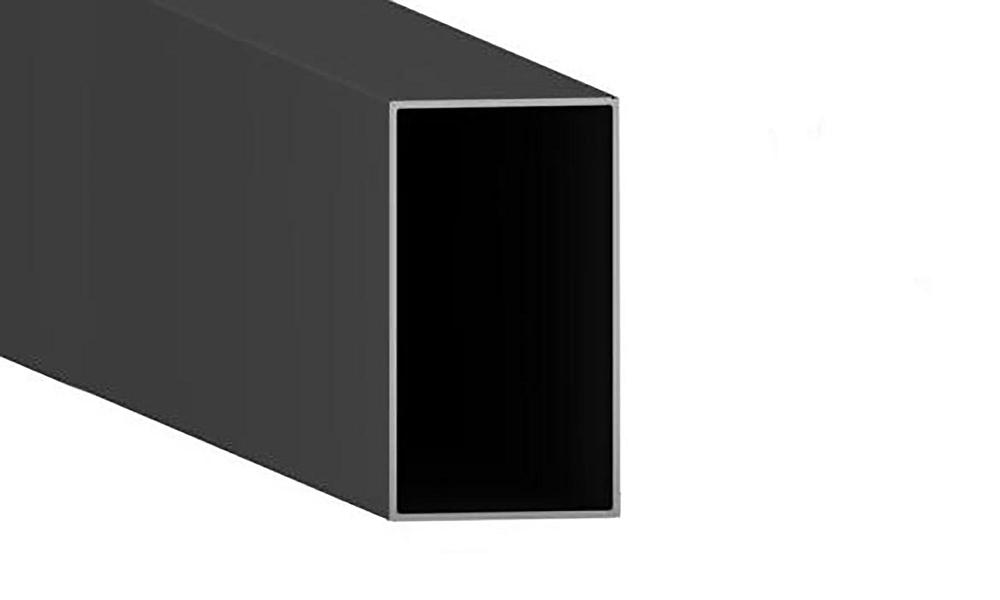

Keep your vehicle protected with our premium aluminium structure, designed to withstand the elements while looking sleek in any driveway + the added bonus of STORAGE! Our 6-metre long solid aluminium beams are engineered for exceptional strength and structural integrity. Unlike beams with multiple joins or sections, these continuous solid beams provide durability and load-bearing capacity. Plus this model has an additional aluminium room providing versatile functionality
A carport is great for protecting your car—until it becomes the perfect spot for BBQs, home gyms, or an impromptu dance floor! The room is completely covered in, secure, showerproof, and ideal for bikes, bins, or equipment. Consider adding a light for visibility.
Want more than just a roof? Opt for panelled sides (sold separately) to add shelter from wind and rain—or simply to enhance the look of your space.
Carport Dimensions:
- Overall Dimensions: 6.05m (L) x 6m (W) x 2.45m (H)
- Storage Room Dimensions: 1m (W) x 6m (L), accessible via an internal door.
- Height: Gradually slopes from 245cm at the entrance to 230cm at the rear, facilitating water drainage.
Features:
- Roof: Aluminium panel with interlocking corrugated system to prevent leakage.
- Storage Room: Secure, lockable door with keys, showerproof, and ideal for bikes, bins, or equipment. Consider adding a light for visibility.
Available in 3 Matte Colours:
- Black
- Grey
- White
Overall Dimensions:
605cm x 600cm x 235 - 245cm (L x W x H)
Clearance (from base plate to top of under top beam):
- Lowest clearance: 215cm
- Highest clearance:: 229cm

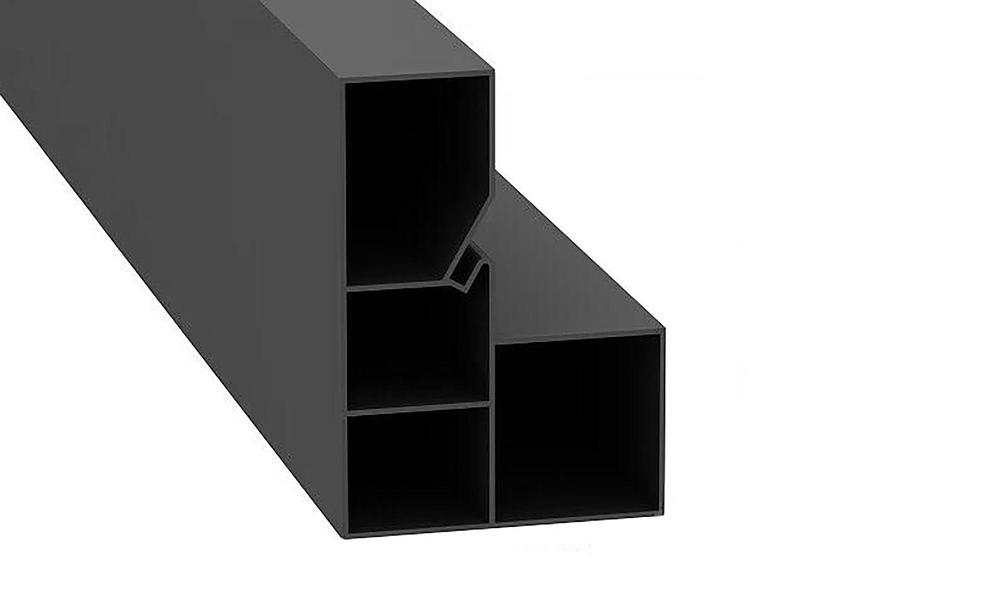

Specifications:
- Full Aluminium Construction
- Post Dims: 120 x 120 x 2mm
- Side Beam Dims: 120 x 85 x 1.5mm
- Middle Beam Dims: 100 x 50 x 3mm

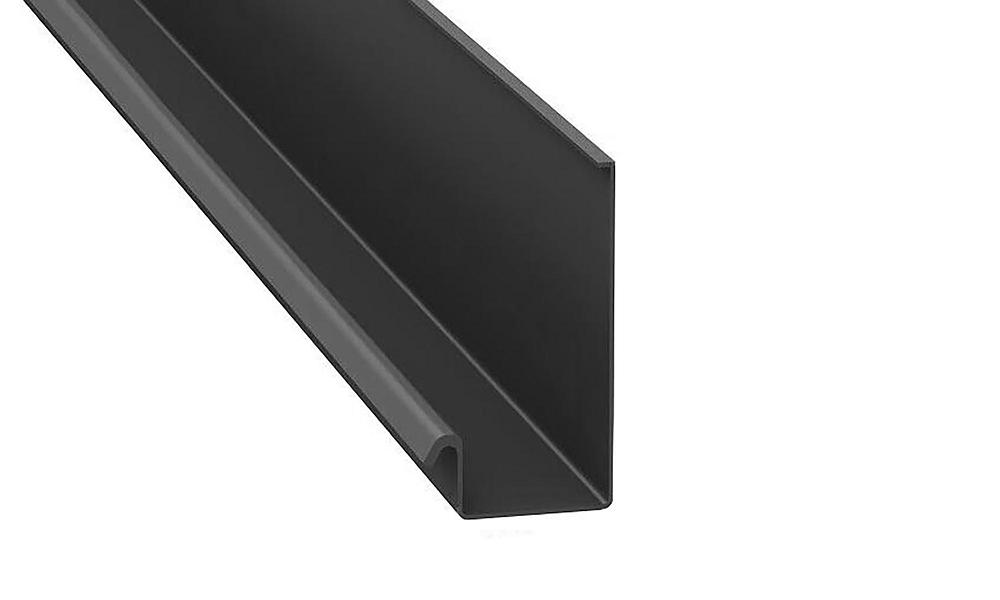

- Gutter Dims: 100 x 45 x 1.5mm

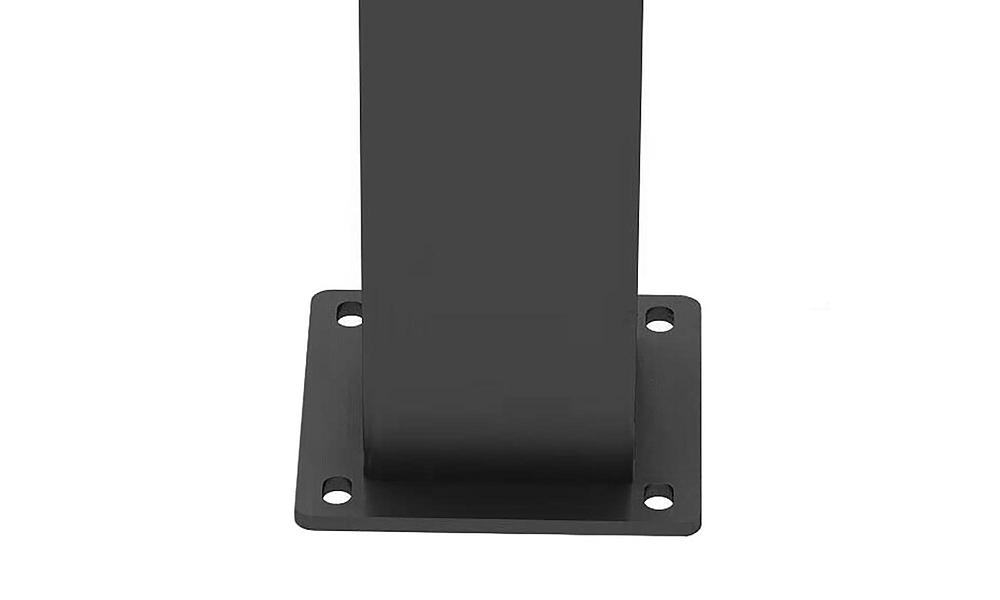

- Base Plate Dims: 180mm, 120mm post.
- Includes: 12 x roof panels that are 315 cm x 100cm (L x W)
- Refer to diagram for leg spacing and other specifics
- Individual Slat Dimension :150 x 16 x 1.2mm (L xH x D)
- 5x 1314 x 2123mm (W x H) Slat Panels for 6m sides
- 2x 994 x 2123mm (W x H) Panels for 6.05m side
- 1x Door 994 x 2123mm (W x H) + 1x hinge panel 734*2123 Hmm for 6m side
- lockable door with keys
Installation:
- Professional installation recommended due to the size.
- Install on a concrete slab or footings with a minimum depth of 150mm.
- Use provided screws in sheltered, domestic areas only. For exposed locations, use professional assistance and obtain suitable fixtures (not provided).
- Alterations void warranty.
Warranty Exclusions:
Warranty excludes fading, extreme weather damage, and misuse. For coastal areas, occasional washing is recommended to prevent corrosion.
Please follow the instruction manual for installation as damage caused by not following the instructions will void your warranty. Warranty covers domestic use only and does not apply to commercial use. However, we will do our best to help with any issues or replacements parts.
Packed Dimensions:
Box 1(Post):2500*275*260mm------------34kgs
Box 2(Post):2380*275*260 mm------------33.1kgs
Box 3(Post):2350*275*260mm------------32kgs
Box 4(Post):2450*260*140mm------------18.3kgs
Box 5(M Beam):5870*170*135mm-------41.3kgs
Box 6:(M beam):5870*140*185mm-------44.2kgs
Box 7(Beam)5950*200*190mm---------- -38.5kgs
Box 8:(Beam)5950*200*190mm-----------38.5kgs
Box 9:(Roof)3200*1100*100mm---------- 56.5kgs
Box 10:(Roof)3200*1100*100mm---------- 56.5kgs
Box 11:(Accessories)300*220*220mm--19.5kgs
Box 12:(Fence):2150*1865*35mm---------40.1kgs
Box 13:(Fence):2150*1865*35mm---------40.1kgs
Box 14:(Fence):2150*1865*35mm---------40.1kgs
Box 15:(Fence):2150*1865*35mm---------40.1kgs
Box 16:(Fence)2150*1865*35mm---------40.1kgs
Box17:(Fence)1000*2160*80mm-----------27kgs
Box18:(Fence)1000*2160*80mm-----------27kgs
Box 19:(Fence)760*2150*35mm------------18.8kgs
Box 20:(Door):1000*2130*80mm-----------28.7kgs
